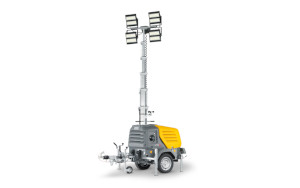

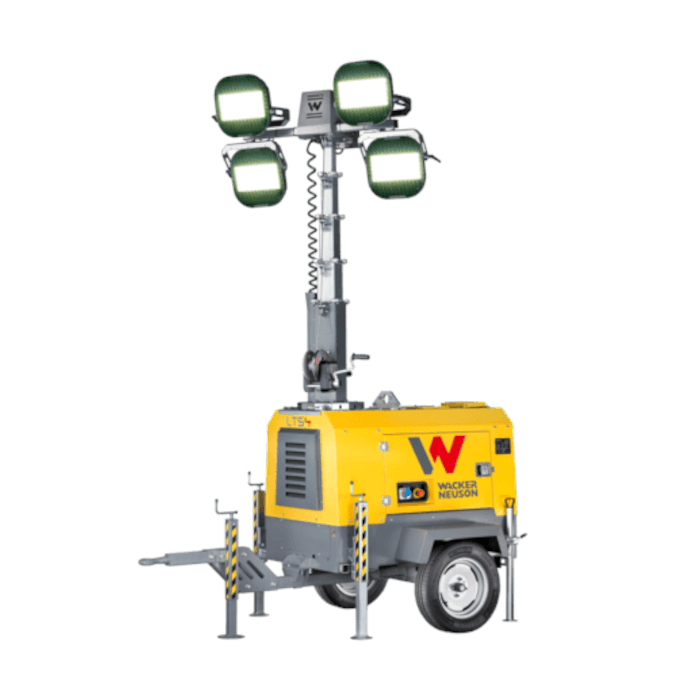

Light Towers with LED Lamps — LTS4: Turn the Night into Day

The LTS4 LED light tower is built for versatile illumination needs—from construction sites and temporary parking areas to outdoor events. Four swiveling LED panels let you direct light exactly where it’s needed, while the integrated generator enables off-grid operation.

Why It Stands Out

• Four swiveling LED panels for targeted illumination
• Integrated generator for independent, off-grid use
• Compact footprint for easy transport and site positioning

LED Lamps — Bright, Efficient, Long-Lasting

• Equipped with 4 × 320 W LED panels, illuminating up to 5,000 m² with bright, low-glare light
• Energy-efficient LEDs reduce fuel consumption and extend run time per tank
• Long service life of up to 50,000 hours lowers replacement costs

Vertical Mast (Manual)

• Deploys vertically for fast, simple setup
• Ergonomic manual crank for easy raising and lowering

Operator-Friendly Controls

• Clear, intuitive control panel—quick to learn and use

Site Handling & Security

• Key Start: Simple on/off with lockable cover
• Lifting Eye: Easy loading, unloading, and positioning
• Forklift Pockets: Convenient handling across the job site

Compact Transport Dimensions

• Up to 16 units per 40" container
• Up to 18 units per 13 m truck

Model Variation — LTS4Y

• Nominal Voltage: 230 V
• Nominal / Output Frequency: 50 Hz
• Nominal Power [S]: 0 kVA
• Dimensions (L × W × H): 2,310 mm × 1,390 mm × 2,560 mm
• Mast Height (Max.): 8.5 m
• Generator Manufacturer: Linz Electric
• Generator Rating 1~ (Continuous): —
• Engine Manufacturer: Yanmar
• Cylinders: 1
• Engine Speed (Power Max.): 3,000 1/min
• Fuel: Diesel (generator integrated)
• Fuel Tank Capacity: 85 l
• Fuel Consumption (Lights Only): 0.5 l/hr
• Run Time (Lights Only): 170 hrs
• Starter Battery Voltage: 12 V
• Battery Capacity (Nominal): 44 Ah
• Lighting Appliances: 320 W (LED)
• Bulb Power: 320 W
• Coverage Area: 5,000 m²

Shipping Dimensions

• Length: 1,410 mm
• Width: 960 mm
• Height: 2,210 mm
