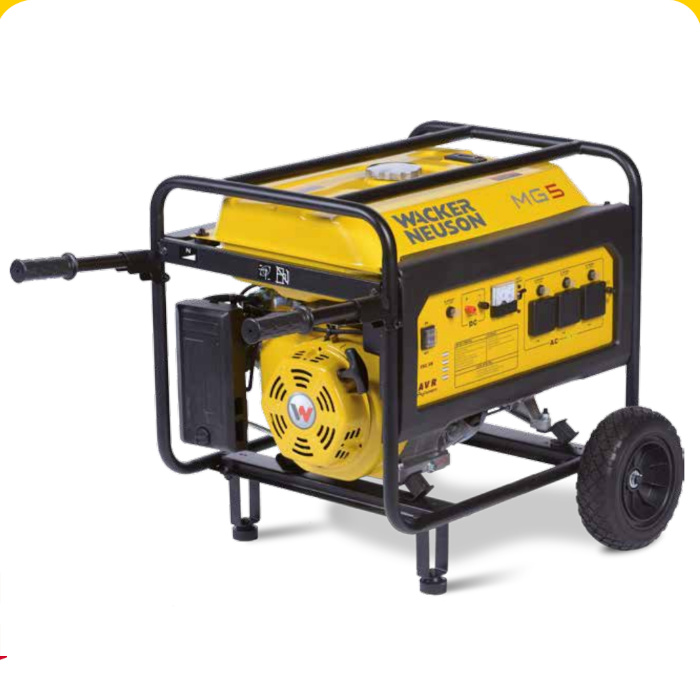

GENERATOR MG5 WACKER AVR
MG5 AVR
Wacker Neuson MG Series — Economical Generators for Reliable Job Site Power
The Wacker Neuson MG Series offers rugged, portable generators designed to deliver dependable power for every job site and budget. These economical units provide hours of reliable performance, ideally suited for construction, industrial, commercial, domestic, and farm applications.
Additional Advantages
- Fully wrapped frame with heavy-duty steel bars protects the generator in tough job site conditions
- Maintenance-free wheel kit and foldable handles for easy mobility
- Superior performance shock mounts minimize vibration for extended machine life
- Equipped with Wacker Neuson 4-stroke petrol engines (WN7 or WN13) for reliable power output
- Compact design minimizes storage requirements
Technical Data
| Specification | Unit | MG3 | MG5 |
|---|---|---|---|
| Dry weight (without fuel) | kg | 50 | 82 |
| Operating weight (fuel tank half full) | kg | 55.5 | 92 |
| Dimensions (L × W × H) | mm | 593 × 465 × 457 | 683 × 540 × 552 |
| Fuel tank capacity | l | 15 | 25 |
| Full load continuous running time | h | 7 | 8 |
| Noise level | dB | 70 | 72 |
| Insulation level | - | F | F |
| Alternator type | - | Carbon brush, Synchronous | |
| Voltage regulator | - | AVR | |
| Phase | - | Single | |
| Max. output power | kW | 3.0 | 5.5 |
| Rated output power | kW | 2.7 | 5.0 |
| Output frequency | Hz | 50 | 50 |
| Rated voltage | V | 220 | 220 |
| Engine model | - | WN7 | WN13 |
| Engine type | - | Air-cooled, 4-stroke, single cylinder, OHV | |
| Displacement | cm³ | 212 | 389 |
| Rated running speed | rpm | 3000 | 3000 |
| Engine max. output power | kW | 4.2 | 7.5 |
