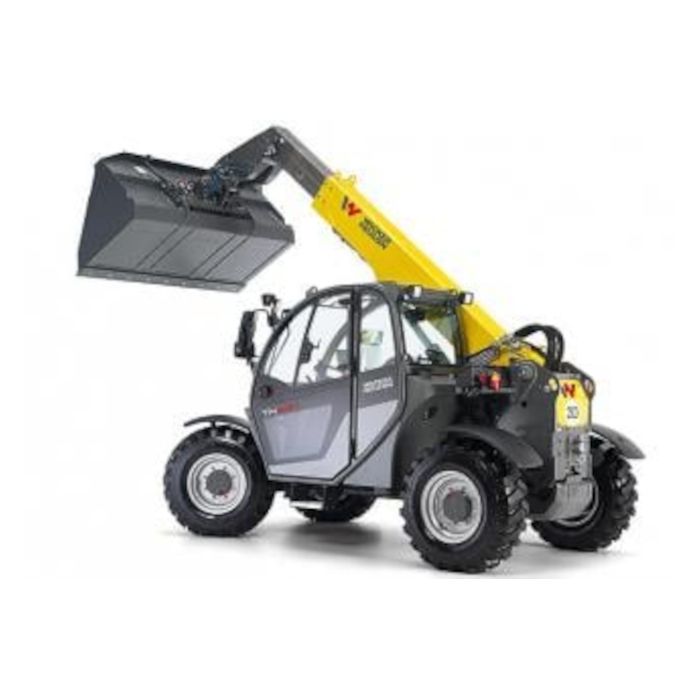

TH627 Telehandler — Overview

The TH627 is a compact, do-it-all telehandler built for tight jobsites and high stacking. With a 2.7-tonne payload and lift heights up to 6 m, it pairs stability under heavy loads with agile maneuvering, including crab steering for precise positioning. An ergonomic, safety-forward cabin and flexible configurations help crews stay efficient all day.

Key Highlights

• Payload capacity: 2.7 metric tonnes
• Maximum stacking height: up to 6 meters
• Crab steering for tight-space maneuverability
• Powerful Kohler diesel with high-output alternator
• Ergonomic, safety-oriented cabin design

Operational — Load Capacity

• Load Max: 5,952.50 lb
• Load Lift: 3,968.3 lb

Tires

• Tire Size (Front): 340/80-18 in
• Tire Size (Rear): 340/80-18 in

Power System

• Power Type: Diesel
• Alternator Output: 80 amp
• Engine: Kohler KDI2,504TCR S5
• Rated Power (SAE): 225 hp
• Number of Cylinders: 4
• Piston Displacement: 151.5 cu in

Auxiliary Hydraulics (Attachments)

• Max Operating Pressure: 3,770 psi
• Max Flow Rate: 23.5 gpm

Truck Weights

• Total Weight (Without Battery): 11,023.12 lb

Performance

• Travel Speed (F/R), Full Load: standard 12.4 mph; optional 18.6 mph

Exterior Dimensions

• Maximum Lift Height: 225.6 in
• Overall Length: 173.2 in
• Overall Width: 77.2 in
• Mast Reach: 21.9 in

Why It’s Great On Site

• Stable under extreme loading conditions for confident high stacking
• Compact footprint and advanced steering options for crowded areas
• Cabin designed for comfort, control, and all-day productivity
