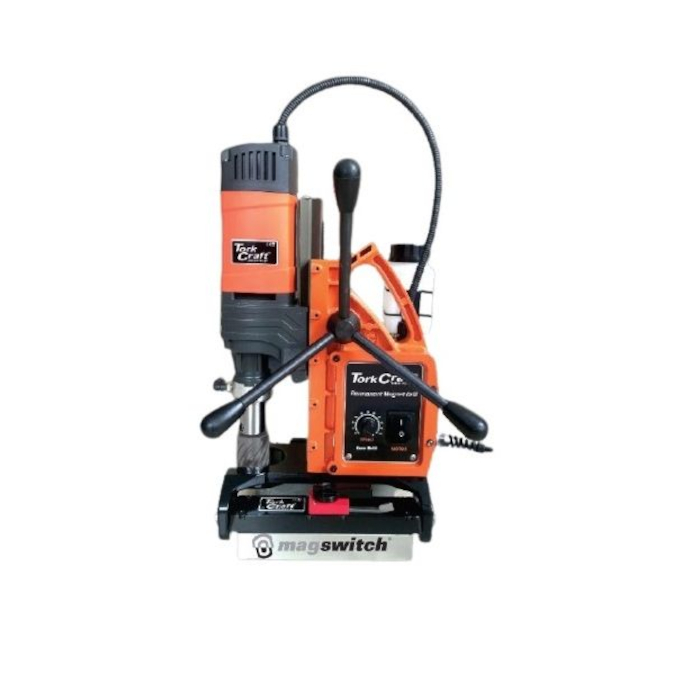

Tork Craft TCMD0035PM — 35mm Magnetic Base Drill

The Tork Craft TCMD0035PM Magnetic Base Drill is designed for precision, portability, and power. With torque control, overload protection, and a strong dual-coil electromagnet, it ensures safe and efficient drilling on flat and curved surfaces. Integrated cooling, lubrication, and gearbox technology enhance durability and accuracy, while soft start and constant power features make it ideal for both industrial and workshop use.

Key Features

• Torque control for optimal drilling performance
• Soft start motor with constant power output
• Overload protection for safe operation
• Strong dual-coil permanent electromagnet for stable adhesion
• High efficiency and lightweight design
• Integrated cooling and lubrication system
• Built-in slide and gearbox for high accuracy and minimal vibration
• Capable of horizontal, side face, and top face drilling
• Suitable for drilling on round pipes

Technical Specifications

• Voltage: 220–230 V 50 Hz
• Cable Length: 2.5 m
• Core Drill Capacity: 35 mm
• Twist Drill Capacity: 13 mm
• Rated Input Power: 1,600 W
• No-load Speed: 810 rpm
• Magnet Dimensions: 166 (L) × 80 (W) × 50 (H) mm
• Maximum Magnetic Holding Force: 16,000 N
• Cutting Depth: 35 mm
• Stroke Length: 210 mm
• EAN / GTIN: 6009515871017
• Brand: Tork Craft
